Features

  • Frame compatibility
    Supports a wide range of bike frame geometries from 20mm to 90mm diameter thanks to the versatile strap attachment
  • Adjustable bike fit
    Moveable head that rotates, slides, and adjusts flexibly to fit different bike sizes and styles, making sure it always finds the perfect position on the frame

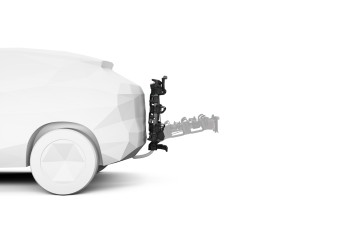

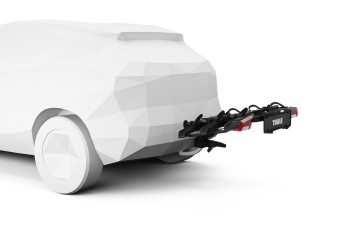

  • Tilt-up function
    Tilts up towards the car when parked, making it ideal for urban use. Note: The bike carrier must not be driven in the upright position; this feature is for parking only

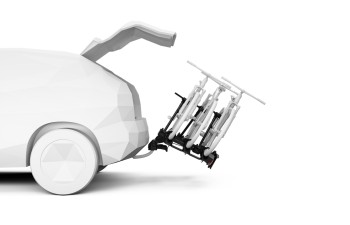

  • Easy trunk access
    Carrier tilts down to allow access to the trunk at all times

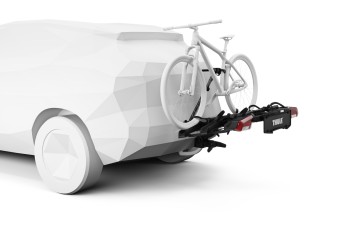

  • Individual bike loading and unloading
    You can load and unload up to two bikes in any order – all types of frames and geometries are supported
  • Lightweight design
    Carrying handle and lightweight design for easy handling and installation, making it perfect for casual use

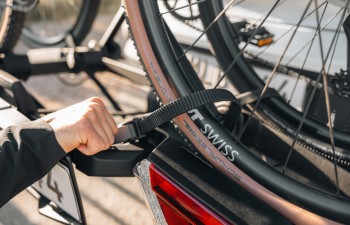

  • Strap attachment
    The parking slot for the wheel strap keeps the wheel straps neatly tucked away while loading bikes. The ratcheting pump buckles and wheel straps make it easy to fasten tires up to 3"
  • Easy to handle and install
    Easy to mount on towbar from a vertical position

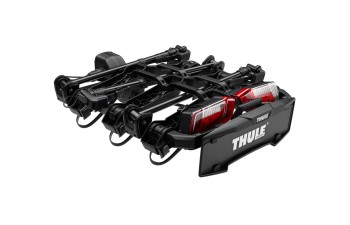

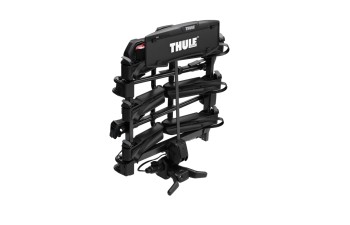

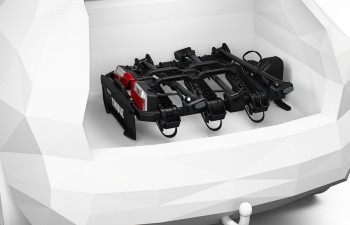

  • Storage solution

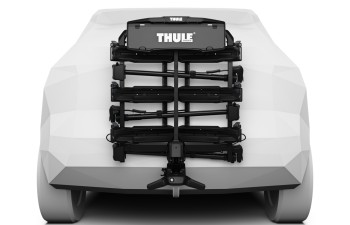

    Folds into a compact unit for easy storage in tight spaces

Technical Specifications

Max number of bikes 3
Load Capacity 50kg
Max bike weight 25kg
Dimensions (LxWXH) 88 x 122 x 46 cm
Folded Dimensions (LxWxH) 76 x 24 x 94 cm
Weight

18.6kg
Fits frame dimensions 20-90mm
Max tyre width 3"
Max wheel size (diameter) 29"
Max wheelbase 1250mm
Distance between bikes 23cm
Carbon frame compatible ✓
Wheel mounting  Pump buckle
Tilt function (with bikes) ✓
Fits cars with exterior spare wheel ✓
Rear lights ✓
One Key system compatible ✓
Lockable rack to vehicle ✓
Colour Black
Tow ball Standard 1 7/8" or ISO compliant 50mm
Model number 9013100

Resources

Important documents for your Thule product

User Manual
